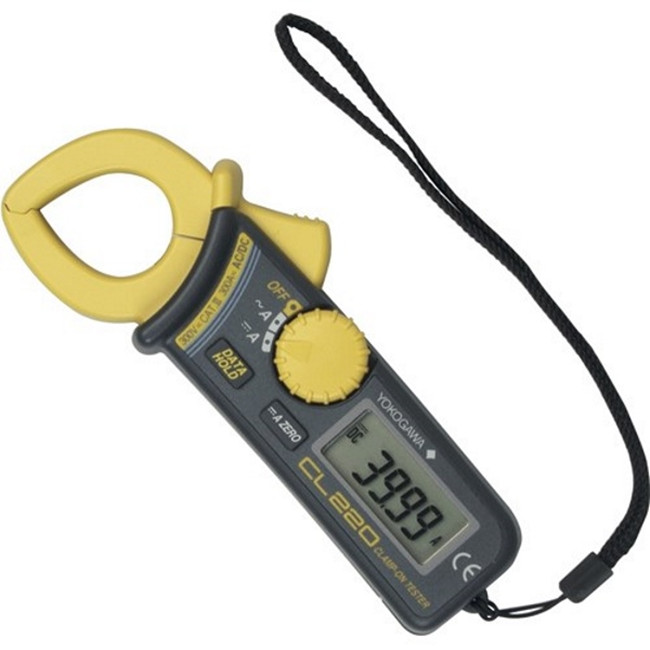

Yokogawa CL220 Clamp-on Meters CL220 AC/DC Current Clampmeter
Description of Yokogawa CL220 Clamp-on Meters CL220 AC/DC Current Clampmeter
Model CL220 is a light and compact Clamp-on meter with the ability to perform AC and DC current and voltage measurements up to 300A. It is inexpensive and Ideal for dedicated current measurement applications.
The Yokogawa CL220 Clamp-on is an Average Responding AC/DC Current Clampmeter that has functions of AC/DC current measurement. It allows you to measure current ranges of 40A/300A fullscale. Able to measure on cables up to 24mm.
The Yokogawa CL220 Clamp-on is an Average Responding AC/DC Current Clampmeter that has functions of AC/DC current measurement. It allows you to measure current ranges of 40A/300A fullscale. Able to measure on cables up to 24mm.
Product Highlights of Yokogawa CL220 Clamp-on Meters CL220 AC/DC Current Clampmeter
• Yokogawa Model # CL220
• Method of detection Mean value
• Display LCD(Digital display:3999 counts)
• Response Time Approx. 2 seconds
• Range Switching Auto-range
• Data Hold On all range
• Ambient temperature and humidity 0 to 40 deg.C, 85% RH or less (no condensation)
• Temperature Coefficient -Influence of external magnetic field 1A or less at 400A/m
• Influence of conductor position ±(2.0% rdg + 5dgt) or less
• Safety Standard Conforms EN 61010-1, EN61010-2-032
• Circuit Voltage 300Vrms or less
• Withstanding Voltage 3.7kV AC for one minute
• Power Supply LR-44 ×2(3V) or SR-44 ×2
• Battery Life Approx. 11 hours (continuous)
• Consumed Current Approx. 9mA
• Sleep Function Automatically powered down in about
• 5 minutes after the last switch operation
• Diameter of measurable conductor 24mm at maximum
• Dimensions Approx. 59(W) × 147(H) × 25(D)mm
• Weight Approx. 100g
CL220 Series, Mini Clamp-on Testers
AC/DC Current (0-40A-300A) Clamp-on Meters
Portable Pocket Clamp-on meters capable of measuring up to 200AAC
(for conductors up to 24 mm in diameter)
Applications of Yokogawa CL220 Clamp-on Meters CL220 AC/DC Current Clampmeter
• HVA applications, simply clamp around a single conductor to make your measurement without having to break the circuit
• Testing for current leakage on branch circuits
• Measuring current draw of motors and motor control circuits
• Measuring Loads
Yokogawa CL220 Clamp-on Meters CL220 AC/DC Current Clampmeter
• AC/DC current measurements with current ranges up to 300A
• 24mm in diameter of measurable conductor
• Light weight & compact design
• Mean value display
• Sleep function
• Approved for comformity to safety standards EN61010-1, EN61010-2-032 (CAT. III 300 V)
* All Clamp-on Meters include Test Leads (where applicable) and a carrying case
Yokogawa CL220 Specifications of Yokogawa CL220 Clamp-on Meters CL220 AC/DC Current Clampmeter
| DESCRIPTION | AC/DC Mini Clamp-on |
|---|---|
| METHOD OF DETECTION | Mean Value |
| DISPLAY | LCD (Digital display: 3999 counts) |
| DC CURRENT RANGE | 40/300A |
| DC CURRENT RESOLUTION | 0.01A |
| RESPONSE TIME | Approx. 2 second |
| RANGE SWITCHING | Auto-range |
| DATA HOLD | On all range |
| OPERATING TEMPERATURE AND HUMIDITY | 0 – 40°C, 90% RH or less (no condensation) |
| INFLUENCE OF EXTERNAL MAGNETIC FIELD | 1A or less at 400 A/m |
| INFLUENCE OF CONDUCTOR POSITION | ±(2% rdg + 5dgt) or less |
| SAFETY STANDARD | Conforms EN61010-1, EN61010-2-031, EN61010-2-032 |
| CIRCUIT VOLTAGE | 300 Vrms or less |
| WITHSTANDING VOLTAGE | 3.7 kV AC for one minute |
| POWER SUPPLY |
LR-44 x 2 (3V) SR-44 x 2 |
| BATTERY LIFE | Approx. 11 hours (continuous) |
| CONSUMED CURRENT | Approx. 9 mA |
| SLEEP FUNCTION | Automatically powered down in about 5 minutes after the last switch operation |
| DIAMETER OF MEASURABLE CONDUCTOR | 24 mm at maximum |
| DIMENSIONS | Approx. 59 (W) x 147 (H) x 25 (D) mm |
| WEIGHT | Approx. 100 g |
| ACCESSORIES |
Batteries, carrying case (93033) User’s manual (IM CL235) |
Yokogawa CL220 Additional Specification: Yokogawa CL220 Clamp-on Meters CL220 AC/DC Current Clampmeter
At 23°C±5°C, 75%RH or less
Accuracy: ±( % rdg + dgt) = ±(% readout + value of least significant digit)
Yokogawa CL220 Clamp-on Meters CL220 AC/DC Current Clampmeter
| PARAMETER | REFERENCE | ACCURACY |
|---|---|---|
| DC current | 40A | 1.0+4 |
| 300A(±20～±200A) | 1.5+4 | |
| 300A(±200～±300A) | 3.0 | |
| AC current | 40A | 1.0+4 (50/60Hz) |
| 2.5+4 (20～1kHz) | ||
| 300A(20～200A) | 1.5+4 (50/60Hz) | |
| 2.5+4 (20～1kHz) | ||
| 300A(200～300A) | 3.5 (50/60Hz) | |
| 4.0 (20～1kHz) |
Specifications of Yokogawa CL220 Clamp-on Meters CL220 AC/DC Current Clampmeter
| Description | AC/DC Mini Clamp-on |
|---|---|
| Method of detection | Mean Value |
| Display | LCD (Digital display: 3999 counts) |
| DC Current Range | 40/300A |
| DC Current Resolution | 0.01A |
| Response Time | Approx. 2 second |
| Range Switching | Auto-range |
| Data hold | On all range |
| Operating temperature and humidity | 0 - 40°C, 90% RH or less (no condensation) |
| Influence of external magnetic field | 1A or less at 400 A/m |
| Influence of conductor position | ±(2% rdg + 5dgt) or less |
| Safety Standard | Conforms EN61010-1, EN61010-2-031, EN61010-2-032 |
| Circuit voltage | 300 Vrms or less |
| Withstanding voltage | 3.7 kV AC for one minute |
| Power Supply |
LR-44 x 2 (3V) SR-44 x 2 |
| Battery Life | Approx. 11 hours (continuous) |
| Consumed current | Approx. 9 mA |
| Sleep Function | Automatically powered down in about 5 minutes after the last switch operation |
| Diameter of measurable conductor | 24 mm at maximum |
| Dimensions | Approx. 59 (W) x 147 (H) x 25 (D) mm |
| Weight | Approx. 100 g |
| Accessories |
Batteries, carrying case (93033) User's manual (IM CL235) |
Selection Guide of Yokogawa CL220 Clamp-on Meters CL220 AC/DC Current Clampmeter
| AC Current Range | 40/300A |
|---|---|
| AC Current Resolution | 0.01A |
| AC Current Frequency characteristics | 20~1kHz |
| AC Current Method of detection | Mean Value |
| AC Voltage Measurement | - |
| DC Voltage Measurement | - |
| Continuity Check Measurement | - |
| Frequency Measurement | - |
| Temperature Measurement | - |
| Recorder output Function | - |
| Waveform monitor output Function | - |
| Data hold Function | O |
| Auto hold Function | - |
| Peak Hold Function | - |
| Maximum value memory Function | - |
| Mean value display Function | - |
| Filter Function | - |
| Range Hold Function | - |
| Auto ZERO Adjust Function | O |
| Auto power-off Function | Δ |
Additional Specification of Yokogawa CL220 Clamp-on Meters CL220 AC/DC Current Clampmeter
At 23°C±5°C, 75%RH or less
Accuracy: ±( % rdg + dgt) = ±(% readout + value of least significant digit)
| Parameter | Reference | Accuracy |
|---|---|---|
| DC current | 40A | 1.0+4 |
| 300A(±20～±200A) | 1.5+4 | |
| 300A(±200～±300A) | 3.0 | |
| AC current | 40A | 1.0+4 (50/60Hz) |
| 2.5+4 (20～1kHz) | ||
| 300A(20～200A) | 1.5+4 (50/60Hz) | |
| 2.5+4 (20～1kHz) | ||
| 300A(200～300A) | 3.5 (50/60Hz) | |
| 4.0 (20～1kHz) |
Ordering Models of Yokogawa CL220 Clamp-on Meters CL220 AC/DC Current Clampmeter
Yokogawa CL130 AC/DC RMS Sensing Current Clamp Meter,200/ 600A
Yokogawa CL250 AC/DC RMS Sensing Current Clamp Meter, 400/2000A
Yokogawa CL120 AC Average Sensing Current Clamp Meter, 20/200A
Yokogawa CL135 AC/DC Avg Sensing Current Clamp Meter, 200/600A
Yokogawa CL150 AC/DC Avg Sensing Current Clamp Meter, 400/2000A
Yokogawa CL155 Clamp-on Tester Meter
Yokogawa CL235 True RMS AC/DC Clamp-on Tester
Yokogawa CL255 Clamp-On Tester
Yokogawa CL320 Clamp-on Tester For Leakage Current
Yokogawa CL340 AC Avg Sensing Current Clamp Meter, 40/400mA/400A
